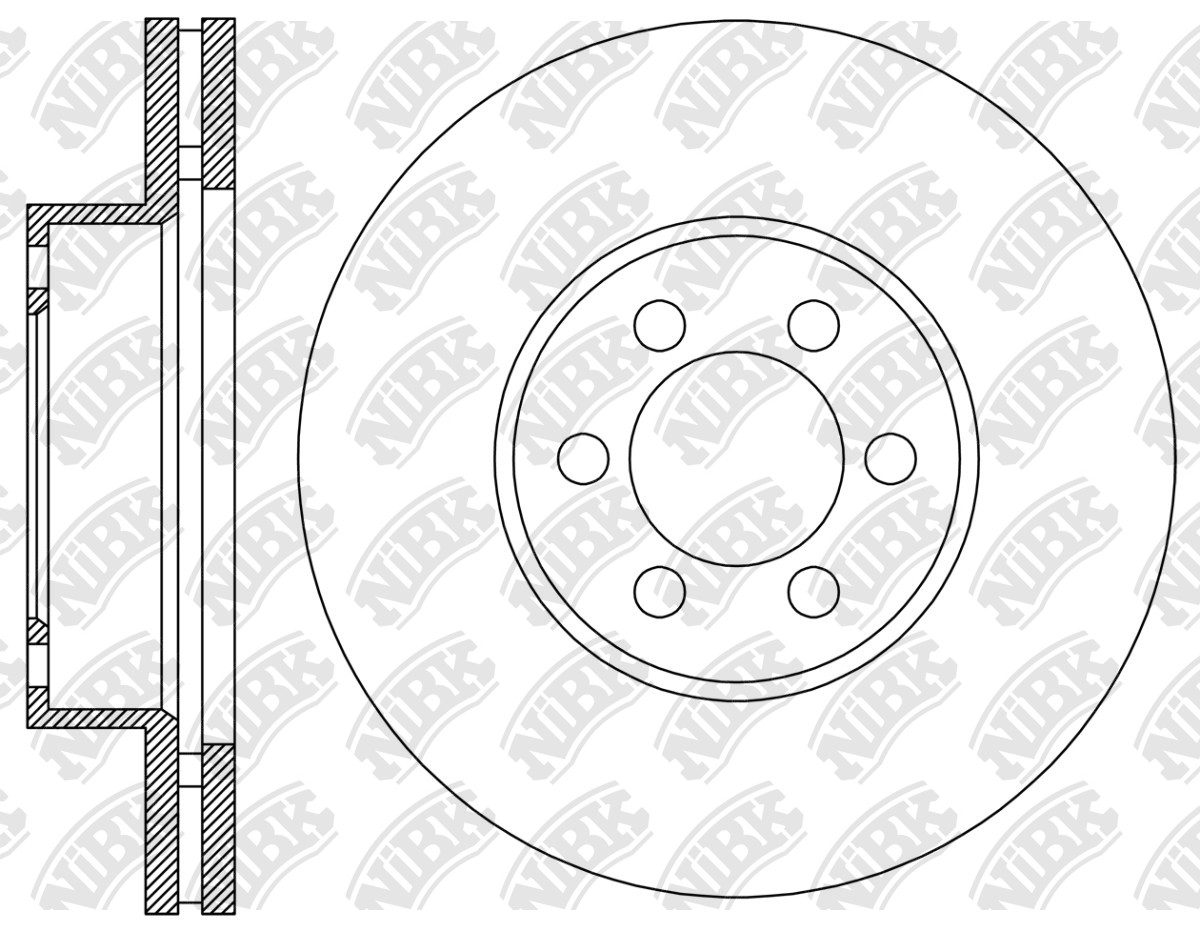

ROTOR DISC » RN2354V
Specification
Type
Vented
Outter Ø
318
Num. of holes
6
Hole Ø:
14.8
Disc Thickness (Max)
28
Disc Thickness (Min)
26
Height
70.2
Centering Diameter
108
Pitch Circle Ø
139.7
Drum Ø:
172
Front/Rear
Front
Structure Material
G3000
Cross Reference
BENDIX
145291
HI-Q
SD4028
TOYOTA
43512-0C010
TOYOTA
43512-0C011
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 01.00~05.07 | 4700 | 2UZ-FE | UCK35 | RN2354V | PN1482HDPN1411PN1482 | RN1216V | PN1243 | |
| 09.00~12.07 | 4700 | 2UZ-FE | UCK45 | RN2354V | PN1482HDPN1482PN1411 | RN1216V | PN1243 | FN0642 |
| 02.99~08.04 | 3400 | 5VZ-FE | VCK30 | RN2354V | PN1482PN1482HDPN1411 | DN1213DN1253DN1214 | FN0686FN2305 | |
| 02.99~08.04 | 3400 | 5VZ-FE | VCK40L | RN2354V | PN1411PN1482HDPN1482 | DN1213DN1253DN1214 | FN0686FN2305 | |
| 08.04~08.06 | 4000 | 1GR-FE | GSK30L | RN2354V | PN1482PN1482HD | DN1213 | FN0686 | |
| 02.99~12.06 | 4700 | 2UZ-FE | UCK30L | RN2354V | PN1411PN1482PN1482HD | DN1253DN1214DN1213 | FN0686FN2305 | |
| 10.03~12.06 | 4700 | 2UZ-FE | UCK31L | RN2354V | PN1482HDPN1482 | DN1213 | FN0686 | |
| 02.99~12.06 | 4700 | 2UZ-FE | UCK40 | RN2354V | PN1411PN1482HDPN1482 | DN1213DN1214DN1253 | FN0686FN2305 | |
| 08.02~12.06 | 4700 | 2UZ-FE | UCK41L | RN2354V | PN1482PN1482HD | DN1213 | FN0686 |
