ROTOR DISC » RN1099V

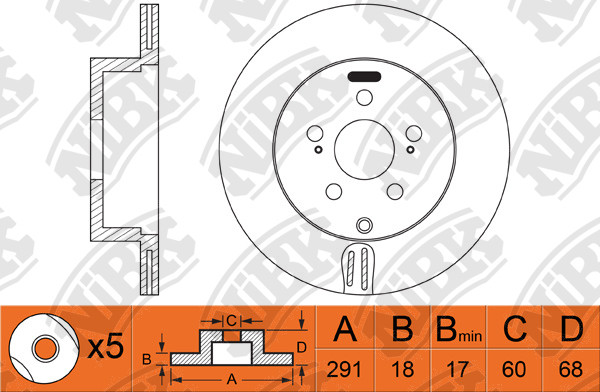

Specification
Type
Vented
Disc Thickness (Max)
18
Num. of holes
5
Height
68
Centering Diameter
60
Front/Rear
Rear
Pitch Circle Ø
114.3
Outter Ø
291
Drum Ø:
189
Structure Material
G3000
Cross Reference
BENDIX
561738B
TOYOTA
42431-14110
TOYOTA
42431-14120
TOYOTA
4243114100
| years | Eng | Eng No | Body | Front Rotor | Front Brake | Rear Rotor | Rear Brake | Parking Shoe |
|---|
| 08.93~12.99 | 2400 | 2TZ-FE | TCR10W | RN1070VRN1461V | PN1273PN1404PN1217 | RN1099V | PN1274 | FN0567 |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR20W | RN1070V | PN1404PN1273PN1217 | RN1099VDN1256 | PN1274FN2252FN2335 | FN0567 |
| 01.92~01.99 | 2200 | 3C-T | CXR11G | RN1532V | PN1273 | RN1099V | FN2252PN1274 | FN0567 |
| 01.92~12.99 | 2200 | 3C-T | CXR20G | RN1532VRN1461VRN1070V | PN1404PN1217PN1273 | RN1099VDN1256 | FN2252PN1274FN2335 | FN0567 |
| 01.92~08.99 | 2200 | 3C-T | CXR21G | RN1461VRN1532V | PN1404PN1217PN1273 | RN1099V | FN2252FN2335PN1274 | FN0567 |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR10G | RN1070VRN1532V | PN1273PN1217PN1404 | DN1256RN1099V | FN2335PN1274FN2252 | |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR11G | RN1461VRN1070V | PN1217PN1273PN1404 | RN1099V | PN1274FN2335FN2252 | FN0567 |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR20G | RN1070VRN1461VRN1532V | PN1404PN1217PN1273 | RN1099VDN1256 | FN2335PN1274FN2252 | FN0567 |
| 01.92~12.99 | 2400 | 2TZ-FE | TCR21G | RN1070VRN1461VRN1532V | PN1217PN1273PN1404 | RN1099V | FN2335PN1274FN2252 | FN0567 |
| 05.90~08.94 | 2400 | 2TZ-FE | TCR21W | RN1461V | PN1273 | RN1099V | PN1274 | FN0567 |
| 05.90~12.99 | 2400 | 2TZ-FZE | TCR11W | RN1070VRN1461V | PN1404PN1217PN1273 | RN1099V | PN1274 | FN0567 |
| 08.94~12.99 | 2400 | 2TZ-FZE | TCR21W | RN1070VRN1461V | PN1273PN1404PN1217 | RN1099V | PN1274 | FN0567 |
